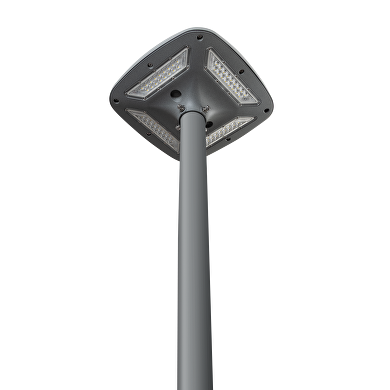

The PL5040IN is an LED park light fixture with a built-in dimmable SOSEN driver featuring a programmable timer, which enables the creation of decentralized adaptive street/park lighting. Using software, the load schedule and operating parameters of the fixture are pre-programmed.
- built-in protection against overheating, short circuit, and overvoltage;
- programming of the output current (power);
- compensation for LED luminous flux degradation;
- 0–10V dimming.
-
dimming according to a pre-set profile;
-
automatic midnight detection and adaptation of the operating cycle;
-
automatic midnight detection and percentage-based adaptation of the operating cycle.
Advantages:
- Housing – aluminum casting with high impact resistance IK08, powder-coated and corrosion-resistant. Does not accumulate dirt (self-cleaning);
- Optical system – each LED chip has a polycarbonate optic, weather-resistant (UV-resistant), distributing light at a wide 140° angle;
- High protection rating against dust and moisture: IP66. The fixtures are suitable for outdoor lighting;
- Built-in surge protection of 6 kV;
- Exceptionally high efficiency of 160 lm/W;
- Flicker-free emitted light;
- Power factor PF > 0.9
