Sensor dimmer 5V PWM, 12-48V DC, 8A

Art № SDE1L8A
Sensor dimmer 5V PWM, 12-48V DC, 8A

Sensor dimmer 5V PWM, 12-48V DC, 8A

Art № SDE1L8A
description:

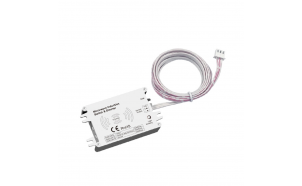

SDE1L8A is a single-channel touch dimmer designed for single-color LED lighting. The input and output ports are located on one side of the device, while the touch sensor is positioned on the other side. A microwave sensor SDEM5V can be connected to it. Depending on the control voltage, the dimmer switches the connected LED strip on/off or dims it.

Optionally, other sensors such as PIR sensors, touch sensors, or IR sensors can also be connected to the device.

specifications:
Protection rating IP20
Working temperature range -20 °C ÷ +50 °C
Dimensions 97/33/18mm
Dimming range 0%-100%
Warranty 2 years
Max output power DC 96/192/288/384W
Max output current 8A
Input/output voltage DC 12/24/36/48V
description:

SDE1L8A is a single-channel touch dimmer designed for single-color LED lighting. The input and output ports are located on one side of the device, while the touch sensor is positioned on the other side. A microwave sensor SDEM5V can be connected to it. Depending on the control voltage, the dimmer switches the connected LED strip on/off or dims it.

Optionally, other sensors such as PIR sensors, touch sensors, or IR sensors can also be connected to the device.
