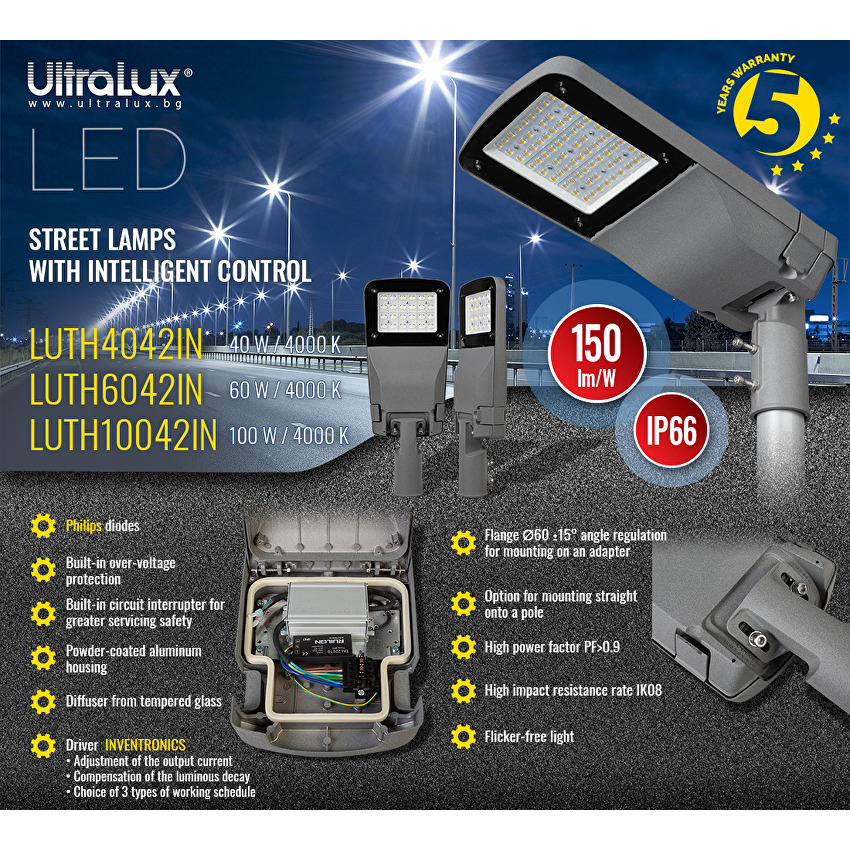

LED intelligent street lamp 40W, 4200K, 220V-240V AC, IP66

Aрт. № LUTH4042IN
LED intelligent street lamp 40W, 4200K, 220V-240V AC, IP66
LED intelligent street lamp 40W, 4200K, 220V-240V AC, IP66 LED intelligent street lamp 40W, 4200K, 220V-240V AC, IP66

LED intelligent street lamp 40W, 4200K, 220V-240V AC, IP66

Art № LUTH4042IN
description:

LED street lamp with programmable driver

  • Philips LEDs with very high luminous flux – over 180 lm/W, which contributes for the excellent efficacy of the fixture – over 150 lm/W.
  • Dimmable programmable driver INVENTRONICS with built-in overheating, overvoltage, and short circuit protections. The driver allows:
    - Adjustment of the output current;
    - Compensation of the luminous decay of the LEDs;
    - Choice between three types of working schedule with the corresponding timers:
    • The driver automatically calculates when midnight is and adjusts the schedule itself.
    • The driver corrects its power on time automatically.
    • The driver follows a pre-programmed curve without making calculations.
  • The fixture has a built-in overvoltage protection, ensuring resistance to supply voltage peaks and surges up to 10kA / 20kV;
  • Built-in circuit interrupter for greater servicing safety;
  • The housing cast of aluminum, which ensures better cooling of the diodes. It is powder-coated and resistant to corrosion;
  • The optical system is made with UV resistant polycarbonate;
  • The light distribution is 150°x90° (IESNA Type III);
  • Tempered glass diffuser;
  • Ø60  flange with ±15° angle regulation (horizontal and vertical) allows a choice of the mounting angle, as well as mounting the lamp straight onto a pole;
  • Flicker-free light.
specifications:
Power 40W
Voltage AC 220-240V
Power factor >0.9
Efficiency 150lm/W
Rated luminous flux 6000lm
Flicker <5%
Correlated Color Temperature (CCT) 4200K
Color Rendering Index (CRI) >70
LED type PHILIPS
Photometric file (.LDT) Yes
Protection rating IP66
Impact protection rate IK08
Working temperature range -20 ⁰C ÷ +45 ⁰C
Diffuser UV resistant PC with a lens on each LED
On/Off cycles >30000
Housing powder coated aluminium die-cast
Dimensions 580/235/105mm
Lumen Maintenance LM80 >50000h
Warranty 5 years
Mounting flange ∅60 with adjustable angle -15° ÷ 15 °
Optical lens PMMA, tempered glass
description:

LED street lamp with programmable driver

  • Philips LEDs with very high luminous flux – over 180 lm/W, which contributes for the excellent efficacy of the fixture – over 150 lm/W.
  • Dimmable programmable driver INVENTRONICS with built-in overheating, overvoltage, and short circuit protections. The driver allows:
    - Adjustment of the output current;
    - Compensation of the luminous decay of the LEDs;
    - Choice between three types of working schedule with the corresponding timers:
    • The driver automatically calculates when midnight is and adjusts the schedule itself.
    • The driver corrects its power on time automatically.
    • The driver follows a pre-programmed curve without making calculations.
  • The fixture has a built-in overvoltage protection, ensuring resistance to supply voltage peaks and surges up to 10kA / 20kV;
  • Built-in circuit interrupter for greater servicing safety;
  • The housing cast of aluminum, which ensures better cooling of the diodes. It is powder-coated and resistant to corrosion;
  • The optical system is made with UV resistant polycarbonate;
  • The light distribution is 150°x90° (IESNA Type III);
  • Tempered glass diffuser;
  • Ø60  flange with ±15° angle regulation (horizontal and vertical) allows a choice of the mounting angle, as well as mounting the lamp straight onto a pole;
  • Flicker-free light.
