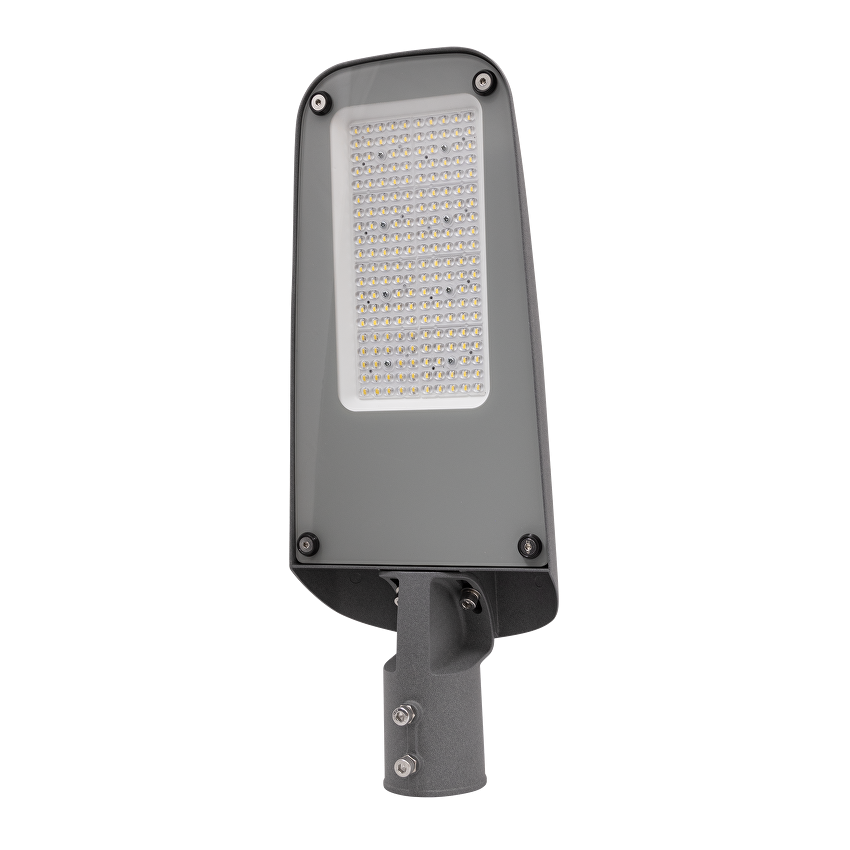

Ultralux presents a new range of LED street lighting fixtures with a programmable ("ASTRO") driver.
The series includes three power ratings: 50W (model № LUTHP5040IN), 100W (model № LUTHP10040IN), 150W (model № LUTHP15040IN). They are available in neutral 4000K light.
Advantages:
- Dimmable (0–10 V DC) programmable ("ASTRO") SOSEN driver with the ability to adjust power output and built-in protection against overheating, short circuit, and overvoltage. It allows:
- Programming of the output current.
- Compensation for LED luminous flux drop.
- Selection of three operating schedule types with corresponding timers:
- The driver automatically calculates midnight and adjusts its schedule.
- The driver automatically corrects the switch-on time.
- Follows a predefined schedule without making calculations.
- Wide input voltage range: 180–265 V AC, 50/60 Hz.
- Built-in surge protection, ensuring resistance to voltage spikes – 10 kA / 20 kV..
- LUMILEDS LEDs with exceptionally high luminous efficacy – over 180 lm/W, contributing to a high overall fixture efficiency of 155 lm/W.
- Optical system made of UV-resistant polycarbonate with light distribution 150°x90° (Type T3A per IESNA), and a tempered glass diffuser.
- Mounting flange with Ø60 mm opening and ±15° angle adjustment (horizontal and vertical), allowing for angle selection during installation and the option to mount the fixture on a pole without an arm.
- Luminous flux drop time with 20% - >60000 hours.
- High index of protection - IP66.
- High power factor PF>0.9.
- High impact protection rate IK08.
- Color rendering index Ra≥70.
- Flicker-free light output.
