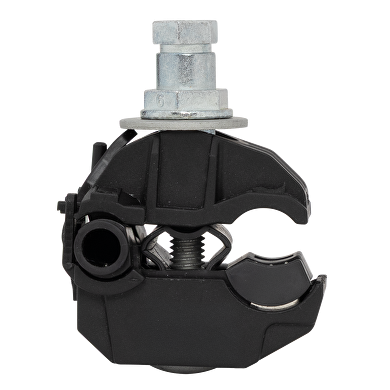

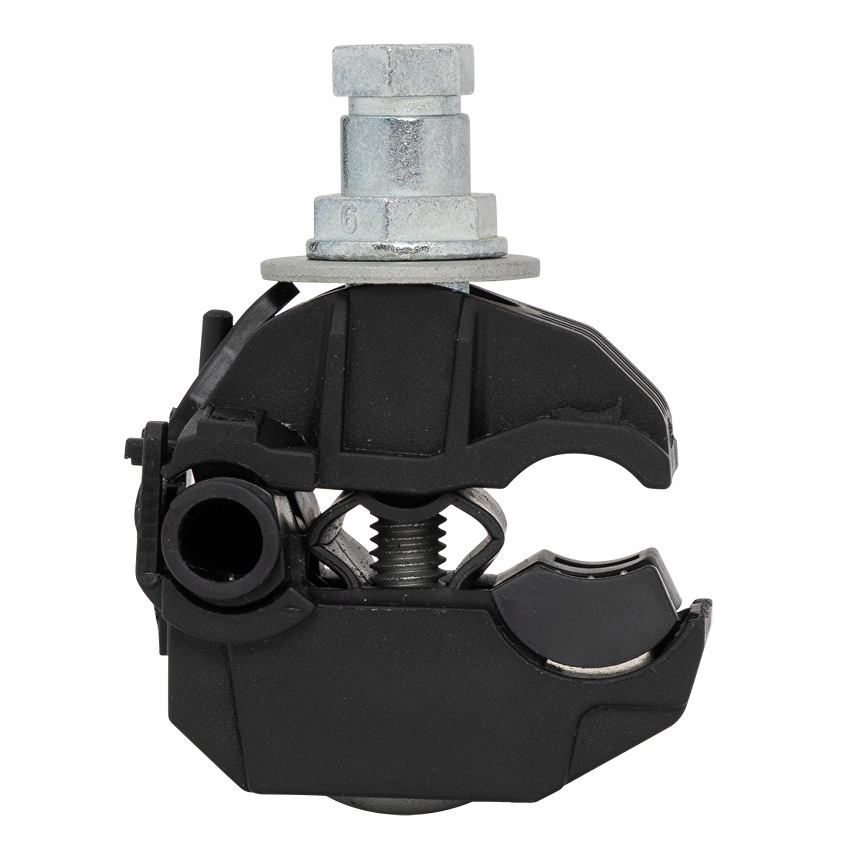

Piercing connector for street lamps 16-95mm2, 1.5-10mm2

Aрт. № PRC16951510
new
Piercing connector for street lamps 16-95mm2, 1.5-10mm2

Piercing connector for street lamps 16-95mm2, 1.5-10mm2

Art № PRC16951510
description:
  • Main line cross-section: 16-95mm2;
  • Branch line cross-section: 1.5-10mm2;
  • Tightening torque: 11 Nm;
  • Electric contact material: Galvanized copper;
  • Bolt: 1 Х М6;
  • Body and sealant: Weather and UV resistant Polyamide PA66 and elastomer;
  • Nut with share-head: Alumonium alloy: 10mm;
  • Insulation cap: UV and weather resistant elastomer;
  • Washer: Steel;
  • Standard: EN 50483-4;
  • Nominal current: max. 55А/AC;
  • Application: Copper and Aluminium wires.
specifications:
Dimensions 35/42/60mm
Rated voltage max. 1kV/AC
description:
  • Main line cross-section: 16-95mm2;
  • Branch line cross-section: 1.5-10mm2;
  • Tightening torque: 11 Nm;
  • Electric contact material: Galvanized copper;
  • Bolt: 1 Х М6;
  • Body and sealant: Weather and UV resistant Polyamide PA66 and elastomer;
  • Nut with share-head: Alumonium alloy: 10mm;
  • Insulation cap: UV and weather resistant elastomer;
  • Washer: Steel;
  • Standard: EN 50483-4;
  • Nominal current: max. 55А/AC;
  • Application: Copper and Aluminium wires.
documents:
