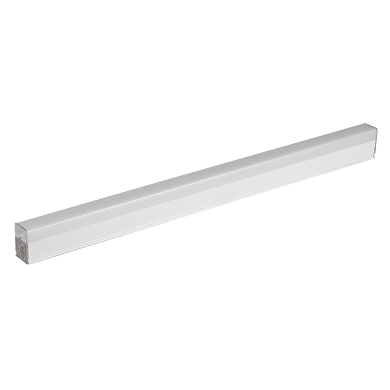

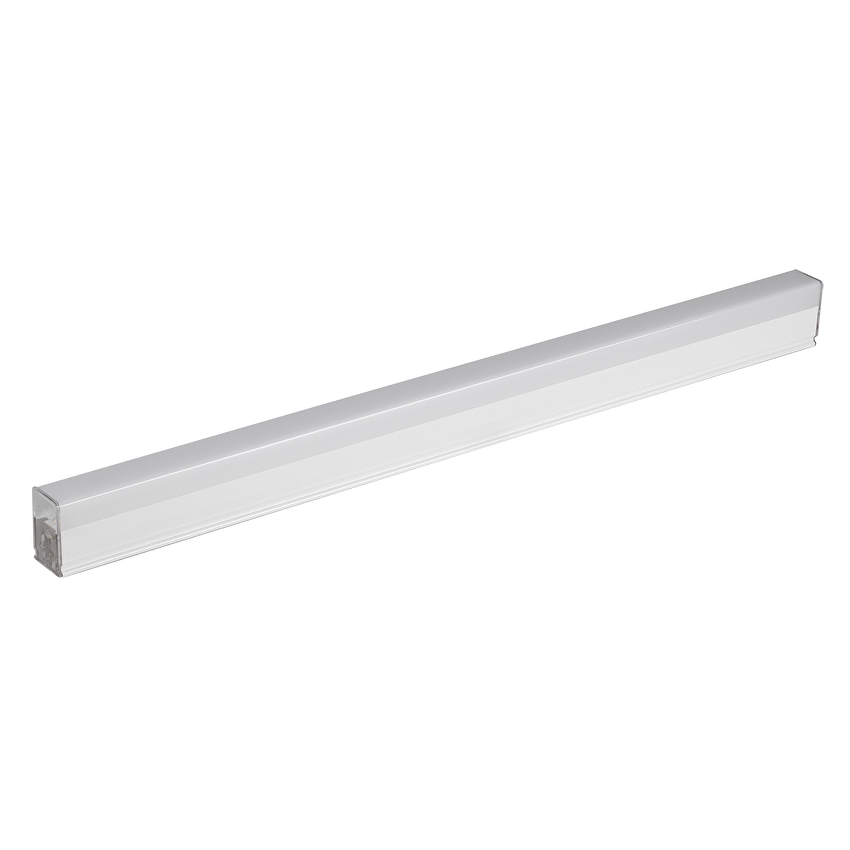

LED modular linear fixture 7W, 6000K, 220-240 V AC, 270° 700lm, IP20

Aрт. № LT5X760
LED modular linear fixture 7W, 6000K, 220-240 V AC, 270° 700lm, IP20

LED modular linear fixture 7W, 6000K, 220-240 V AC, 270° 700lm, IP20

Art № LT5X760
specifications:
Protection rating IP20
Working temperature range -20 °C ÷ +45 °C
On/Off cycles >15000
Dimensions 440/22/35mm
Lumen Maintenance LM80 25000h
Colour white
Starting time <0.2sec
Warranty 2 years
Material plastics
Power 7W
Voltage AC 220-240V
Frequency 50-60Hz
Power factor >0.5
Class II
Dimmable no
Rated luminous flux 700lm
Correlated Color Temperature (CCT) 6000K
Color Rendering Index (CRI) ≥80
Beam angle 270⁰
LED type SMD2835
documents:
