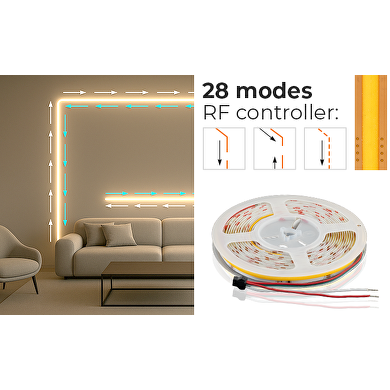

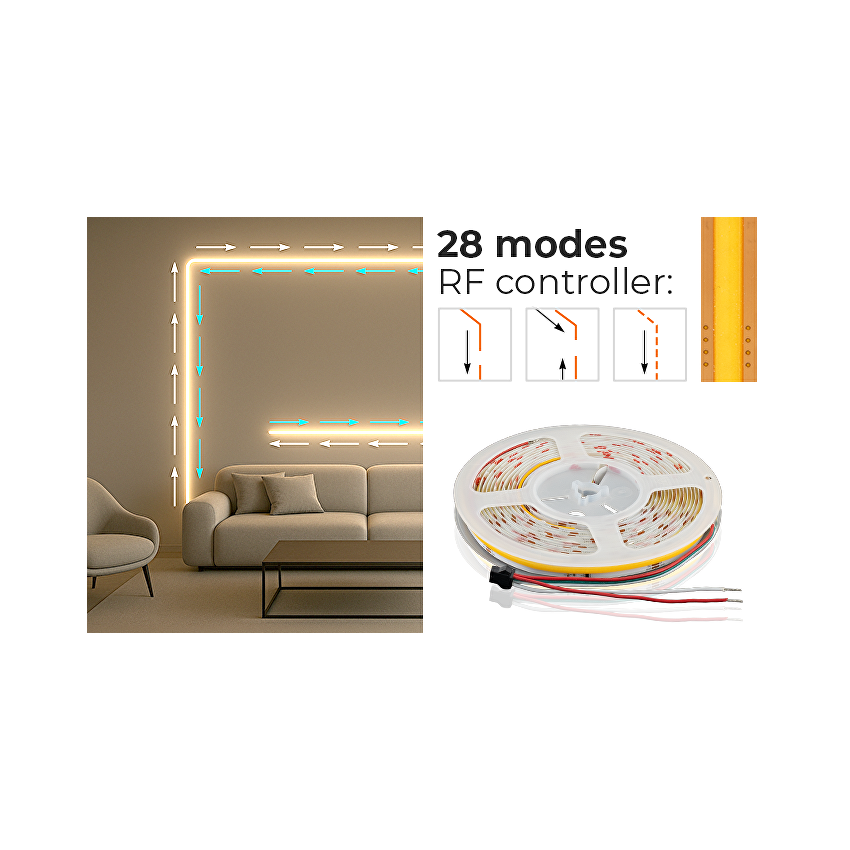

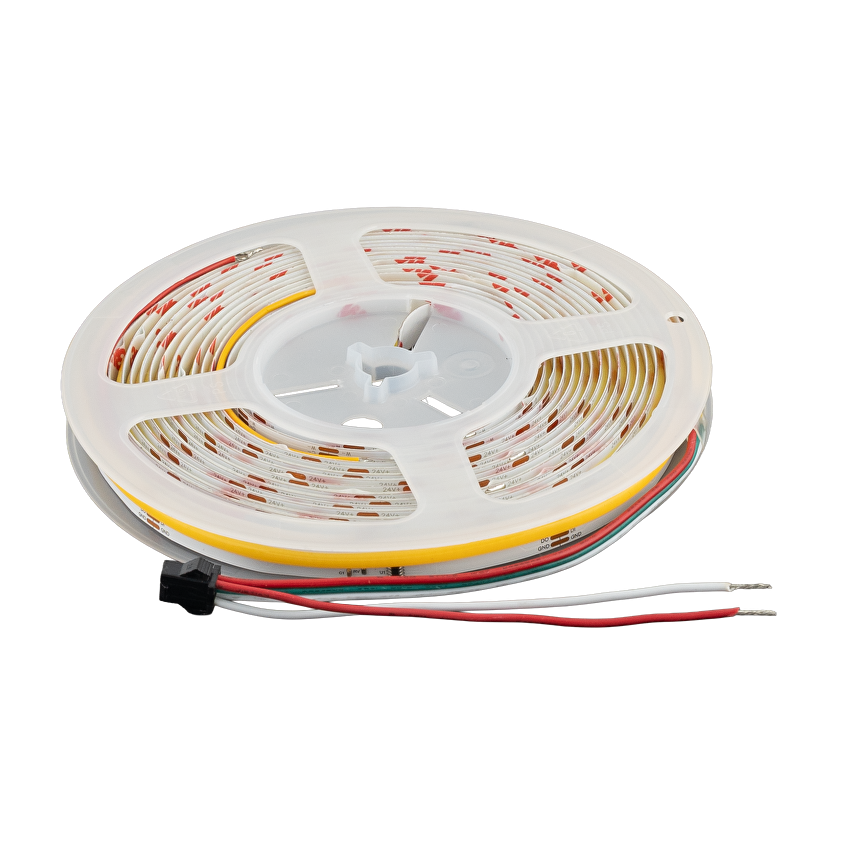

Digital running single colour LED flexible strip 11W/m, 4000K, IC WS2811, 24V DC, 10 pixels/m, COB, 10m, IP20

Art № LCDG420NW10
Digital running single colour LED flexible strip 11W/m, 4000K, IC WS2811, 24V DC, 10 pixels/m, COB, 10m, IP20

Digital running single colour LED flexible strip 11W/m, 4000K, IC WS2811, 24V DC, 10 pixels/m, COB, 10m, IP20

Art № LCDG420NW10
description:

ADVANTAGES:

  • The strip operate at 24V DC. This helps reduce heat losses and, consequently, enables more effective thermal management;
  • COB LEDs provide more attractive lighting effects. The high number of densely positioned LEDs creates a uniform distribution of light, without the visible bright spots that can occur with SMD LEDs;
  • Three-pin SM connectors with integrated wires for connection to the power supply allow the individual strips to be connected quickly and easily;
  • Double-layer copper PCBs with a total thickness of 3 oz ensure minimal heat losses. Nevertheless, we recommend using the strips with aluminum profiles for more effective cooling;
  • 3M double-sided adhesive tape enables quick, easy, and reliable installation that remains secure over time;
  • A wide variety of aluminum profiles is available in the UltraLux range. The strip is 10 mm wide;
  • Control via the WS2811 IC, a popular integrated control circuit, makes this strip a suitable component for a wider range of lighting solutions.
specifications:
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Lumen Maintenance LM80 >30000h
Starting time <0.2sec
Strip width 10mm
Strip length 10m
Warranty 3 years
Power per meter 11W/m
Voltage DC 24V
Dimmable yes
IC type WS2811
LEDs per meter 420LEDS/m
Beam angle 120°
LED type COB
luminous flux per meter 1150lm/m
Type of light neutral white
Number of pixels 10/m
description:

ADVANTAGES:

  • The strip operate at 24V DC. This helps reduce heat losses and, consequently, enables more effective thermal management;
  • COB LEDs provide more attractive lighting effects. The high number of densely positioned LEDs creates a uniform distribution of light, without the visible bright spots that can occur with SMD LEDs;
  • Three-pin SM connectors with integrated wires for connection to the power supply allow the individual strips to be connected quickly and easily;
  • Double-layer copper PCBs with a total thickness of 3 oz ensure minimal heat losses. Nevertheless, we recommend using the strips with aluminum profiles for more effective cooling;
  • 3M double-sided adhesive tape enables quick, easy, and reliable installation that remains secure over time;
  • A wide variety of aluminum profiles is available in the UltraLux range. The strip is 10 mm wide;
  • Control via the WS2811 IC, a popular integrated control circuit, makes this strip a suitable component for a wider range of lighting solutions.
