Protection rating | IP54 |
Working temperature range | -20 ⁰C ÷ +40 ⁰C |

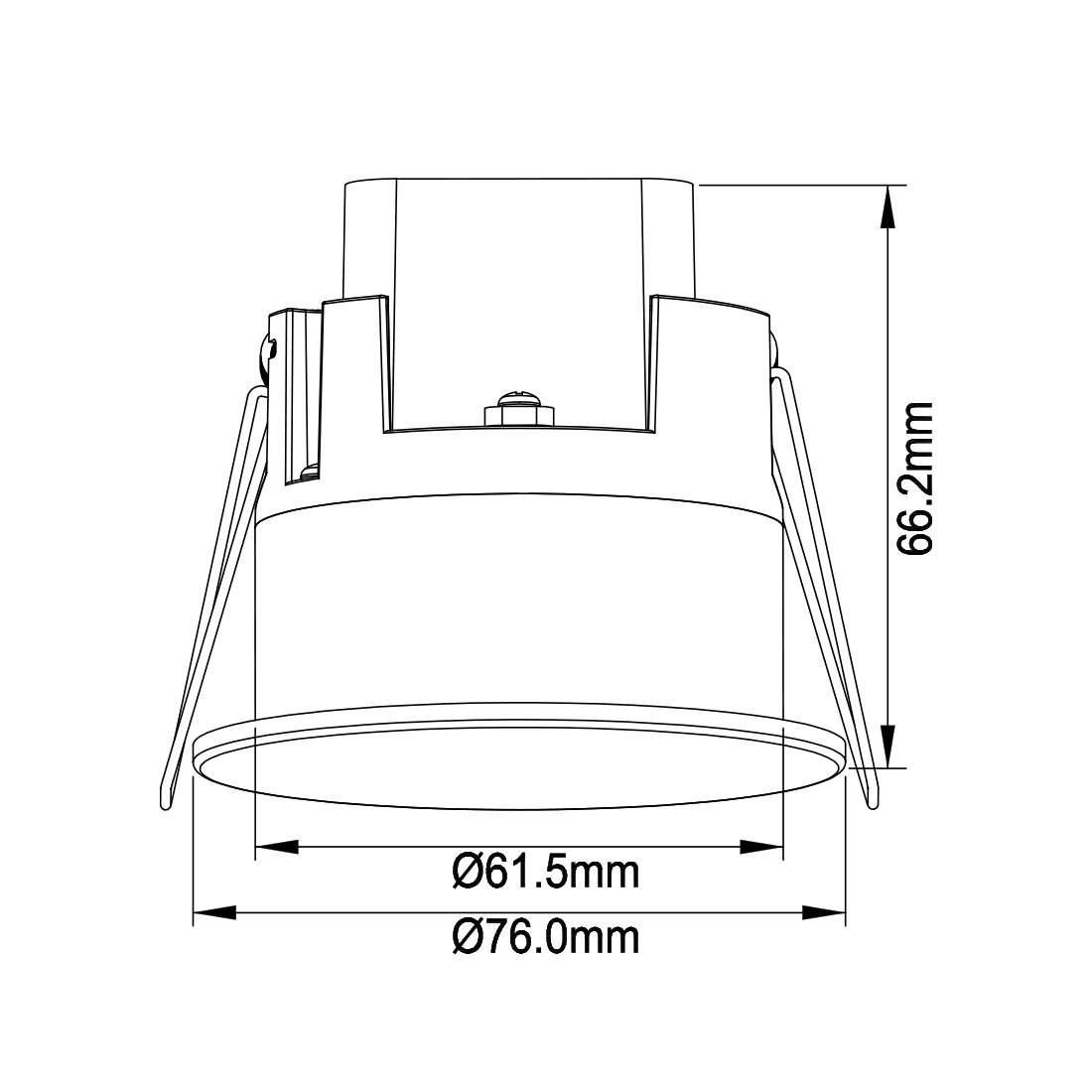

Mounting hole | Ø63-66 mm |
Time delay | 10 sec. - 12min |

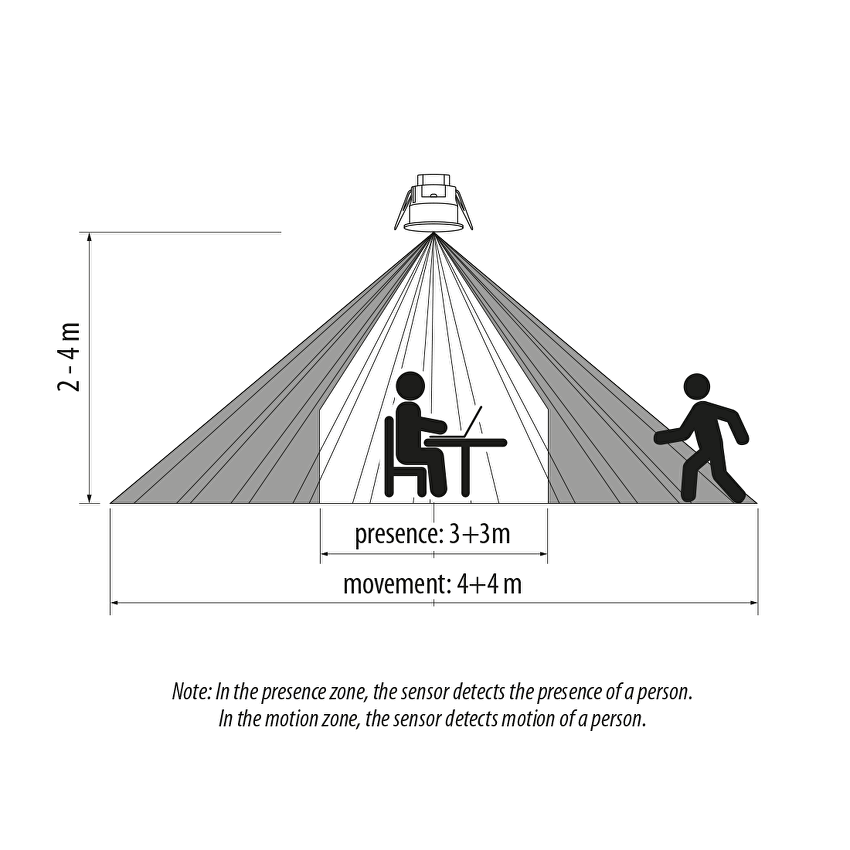

Detection distance | 3m за присъствие/ за движение 4m |
Installation height | 2-4m |
Ambient light | <3-2000lx |
Detection range | 360° |
Warranty | 5 years |
Detection moving speed | 0.6-1.5m/s |
Working humidity | <93%RH |
Voltage AC | 110-240V |
Frequency | 50-60Hz |
Class | II |
Maximum load (active/reactive) | 1200/600W |
Sensor working frequency | 24 GHz, CW radar, ISM bandGHz |
Output signal power | <10mW |
