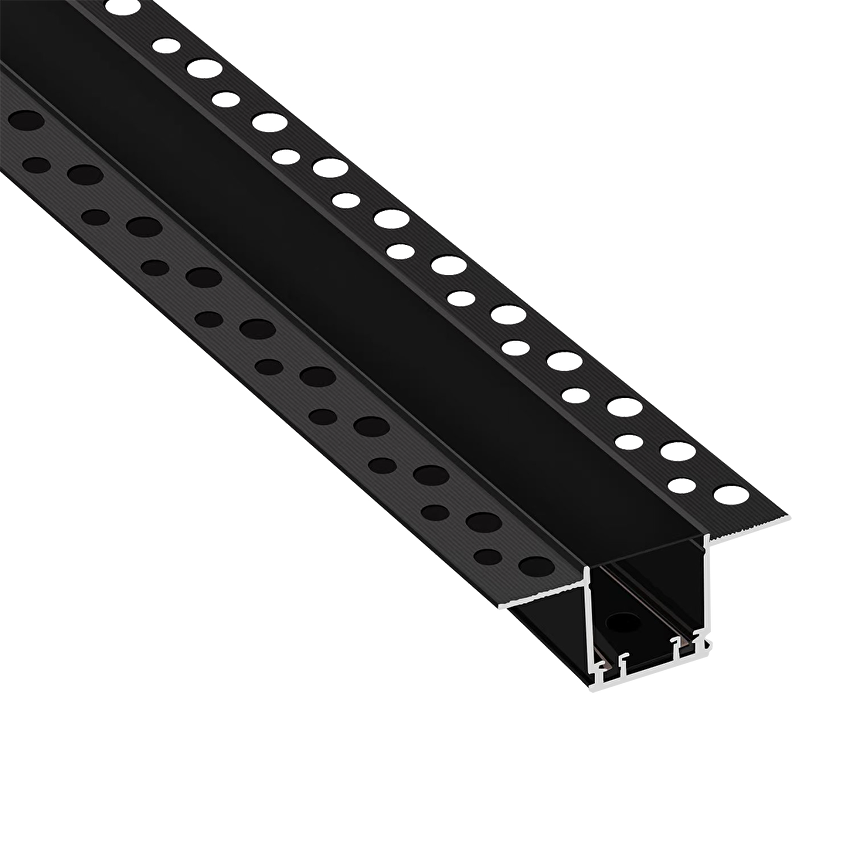

The rails have a deep profile with built-in conductive plates. They are designed for 48V DC and a maximum load of 4A (200W). They are used to power the magnetic lighting fixtures of the system. The rails are supplied with a cover along their full length.
| Protection rating | IP20 |

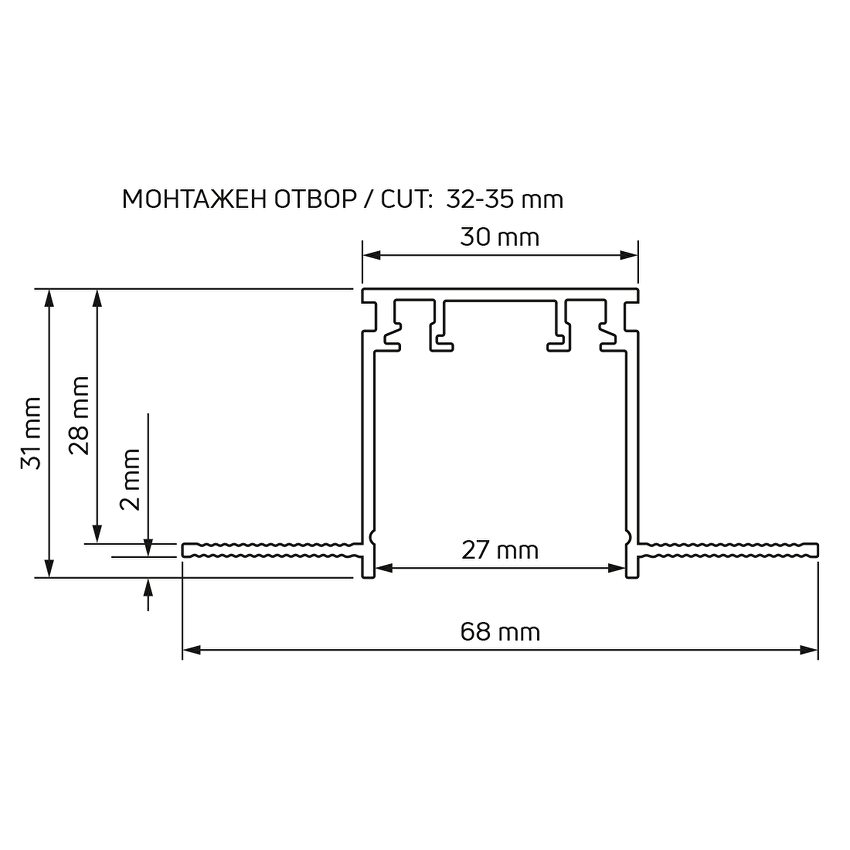

| Dimensions | 1000mm |
| Colour | black |
| Material | aluminium |
| Category | Rails for building-in |
| Maximum power | 200W |
| Maximum current | 4A |
| Max voltage DC | 48V |
The rails have a deep profile with built-in conductive plates. They are designed for 48V DC and a maximum load of 4A (200W). They are used to power the magnetic lighting fixtures of the system. The rails are supplied with a cover along their full length.
