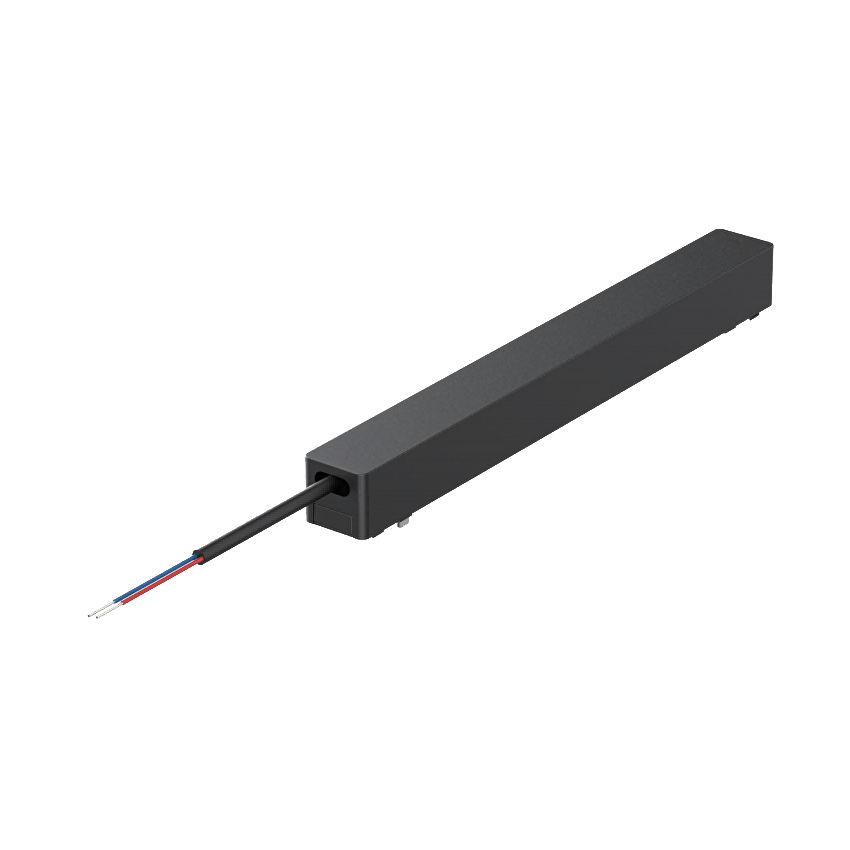

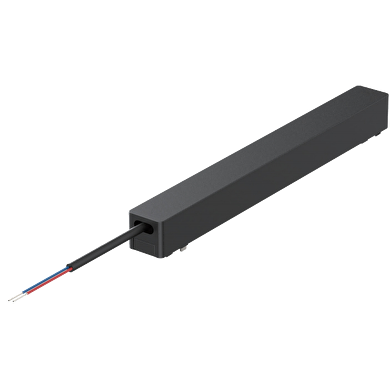

Power supply for LED magnetic smart system, 48 V DC, 100W

Art № LMSTZ48100
Power supply for LED magnetic smart system, 48 V DC, 100W

Power supply for LED magnetic smart system, 48 V DC, 100W

Art № LMSTZ48100
description:

The output voltage of the SMART power supply is 48V DC. It enables adjustment of the color temperature (CCT control) and brightness (dimming) of track lighting fixtures.

Control options:

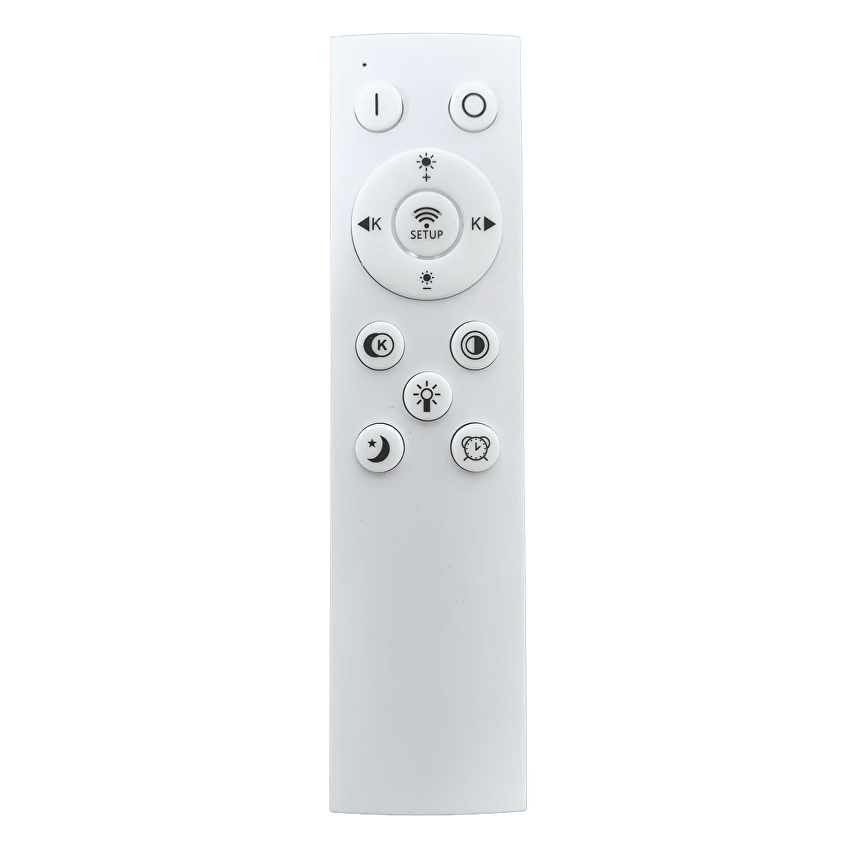

  • RF remote control (included in the package).
  • LAMP Smart Pro application via Bluetooth. Available for Android and iOS.
  • By quickly switching the power supply voltage, four lighting modes can be cycled through:

-   20%  4000K

-  100%  4000K

-   100%  5000K

-   100%  3000K

The SMART power supply has a memory function for the selected lighting mode. If the power supply has been operating for at least 15 seconds and is then switched off for at least 15 seconds, the last operating mode (color temperature and dimming level) is saved.

specifications:
Protection rating IP20
Working temperature range 0 ⁰C ÷ +40 ⁰C
Dimensions 435/26/24mm
Range 20m
Warranty 3 years
Software Lamp Smart Pro
Category SMART power supplies
Max output power DC 100W
Input voltage AC 220-240V
Frequency 50-60Hz
Output voltage 48V
Class I
Max output current 2.08A
RF frequency 2.4 GHz
description:

The output voltage of the SMART power supply is 48V DC. It enables adjustment of the color temperature (CCT control) and brightness (dimming) of track lighting fixtures.

Control options:

  • RF remote control (included in the package).
  • LAMP Smart Pro application via Bluetooth. Available for Android and iOS.
  • By quickly switching the power supply voltage, four lighting modes can be cycled through:

-   20%  4000K

-  100%  4000K

-   100%  5000K

-   100%  3000K

The SMART power supply has a memory function for the selected lighting mode. If the power supply has been operating for at least 15 seconds and is then switched off for at least 15 seconds, the last operating mode (color temperature and dimming level) is saved.
